Custom Injection Mold Bases: The Foundation of Precision Tooling
Custom Injection Mold Bases
The mold base is the most critical structural component of any injection mold, defining its size, stability, ejection mechanisms, and overall lifespan. While standard mold bases work for basic tooling, complex geometries, advanced cooling systems, and specialized production needs require a Custom Injection Mold Base.
At Polymach 365, we leverage the precision of our CNC Machining capabilities to design and fabricate custom mold bases tailored exactly to the demands of your unique product and production environment.
🛠️ Why Custom Mold Bases are Essential
Standard mold bases often impose limitations on cooling, gating, and part geometry. A custom base is engineered to integrate perfectly with your final part design and process requirements, guaranteeing peak performance and longevity.
Leveraging CNC Machining for Mold Base Excellence
The manufacturing of custom mold bases relies heavily on high-precision CNC machining to achieve critical alignment and dimensional accuracy:
Custom Plate Dimensions
We use large-format CNC mills to machine plates to specific thicknesses and widths, accommodating non-standard part sizes or press requirements.
Precision Pocketing
Machining custom pockets and relief features into the core and cavity plates for complex slides, lifters, or special hot runner manifolds that standard bases cannot house.
Advanced Cooling Channels

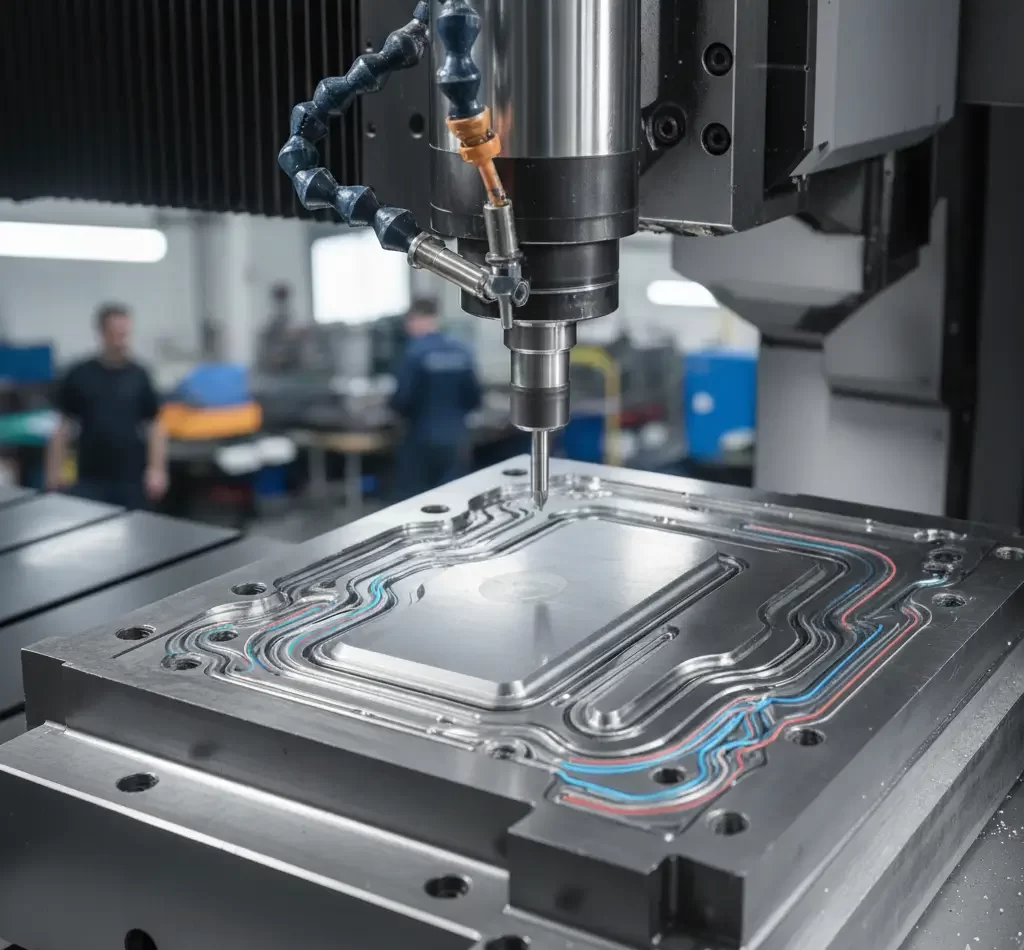

Utilizing multi-axis CNC to drill or mill intricate conformal cooling channels directly into the steel plates. This optimizes temperature control for faster cycle times and reduced warpage, a significant improvement over standard straight-line cooling.
Optimized Ejection Systems
Designing and machining complex ejection patterns, including multi-stage, sleeve, or air ejection systems, perfectly tuned for your part’s geometry.
Material Selection
Choosing and machining specific tool steel grades (e.g., H13, 420 Stainless Steel, or custom alloys) that best suit the required mold life, plastic material, and corrosive environment.
🏗️ Design and Manufacturing Focus
Our engineering team works closely with you to design a mold base that directly addresses the challenges of your specific project:
| Challenge | Custom Solution | CNC/Machining Benefit |
|---|---|---|
| High Heat / Fast Cycle | Integrated Conformal Cooling circuits. | High-precision drilling/milling of complex channel paths directly into plates. |
| Large Part Footprint | Custom-sized core, cavity, and spacer plates. | Large-bed CNC machining maintains flatness and parallelism across the entire plate area. |
| Complex Action | Pockets and guide paths for specialized side actions. | Precision milling ensures alignment and smooth movement of slides and lifters. |
| Corrosive Materials | Machining of Stainless Steel components. | Capability to machine hard, corrosive materials while maintaining tight tolerances. |
🤝 The Synergy: Custom Base + High-Volume Molding
By fabricating your mold base in-house using our precise CNC capabilities, we ensure the foundation of your tooling is robust, perfectly aligned, and optimized for our high-volume Injection Molding production presses. This seamless control over both design and fabrication eliminates guesswork and reduces the risk of tooling failure, guaranteeing exceptional part consistency throughout your product lifecycle.
