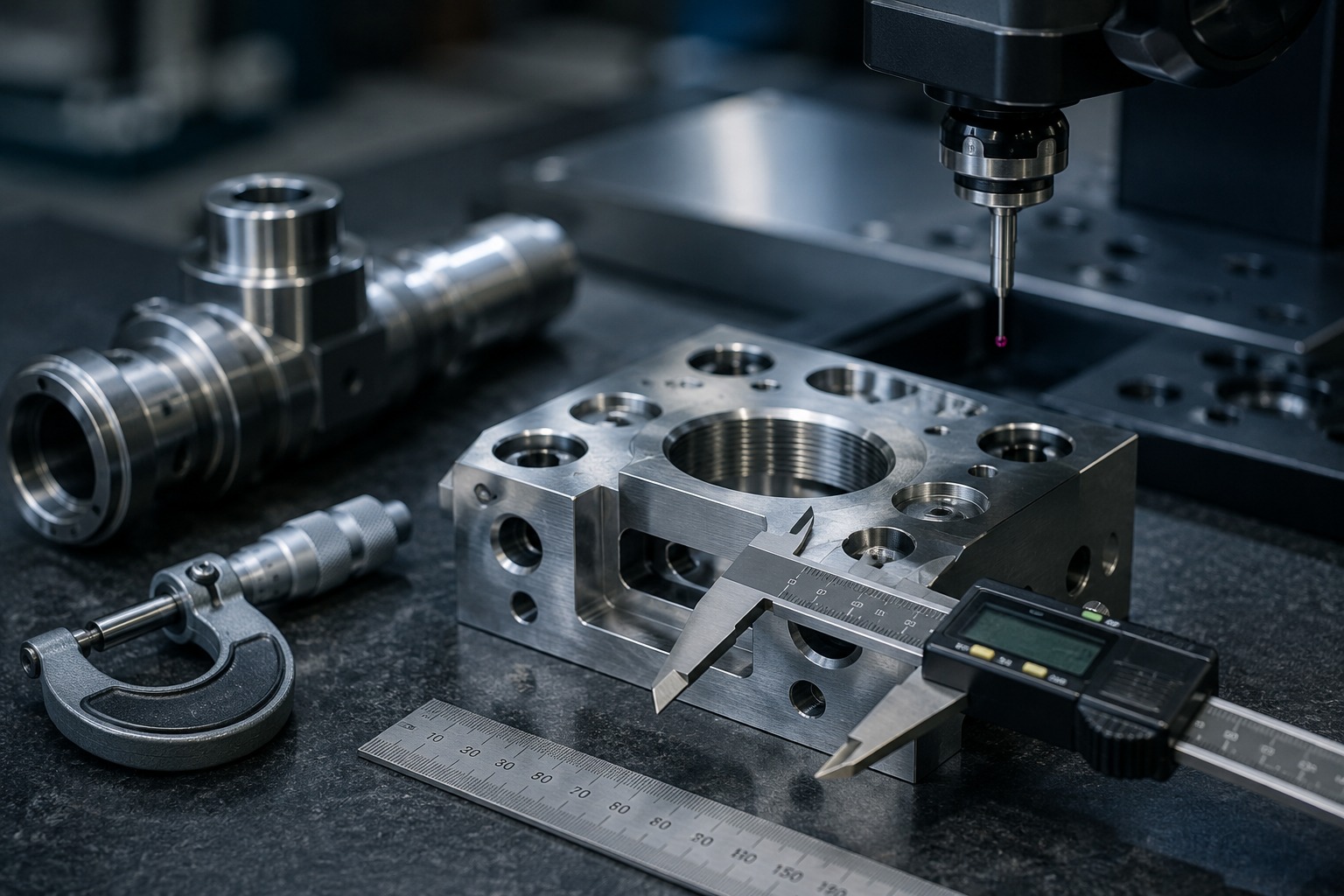

Understanding CNC Machining Tolerances for Accurate, Reliable Parts
CNC machining tolerances play a critical role in the accuracy, fit, performance, and reliability of machined components. When manufacturers design a precision component, every dimension cannot simply be treated as an exact number. Manufacturing processes naturally create small variations.
Therefore, engineers specify acceptable dimensional limits known as machining tolerances.
Whether you are manufacturing a prototype, custom CNC component, mold component, or production part, selecting the right tolerance helps balance part performance, manufacturing complexity, production time, and cost.
At Polymach365, our digital manufacturing workflow supports CNC milling, CNC turning, multi-axis machining, prototype manufacturing, low-volume production, and custom CNC machining for manufacturers and product developers.
What Are CNC Machining Tolerances?
A CNC machining tolerance defines the acceptable amount of variation from a specified dimension.
For example, if a drawing specifies a shaft diameter of 20 mm ±0.05 mm, the acceptable diameter range is:
19.95 mm to 20.05 mm
The CNC machine does not necessarily need to produce every part at exactly 20.00 mm. Instead, the finished component must remain within the specified tolerance.
Therefore, tolerances allow manufacturers to define how much dimensional variation a component can accept while still performing correctly.
Why Are CNC Machining Tolerances Important?
The correct tolerance directly affects how components fit together and function within an assembly.
For example, a shaft that fits into a bearing may require tighter dimensional control than a non-critical mounting bracket.
Therefore, manufacturers should not automatically specify extremely tight tolerances for every feature.
Appropriate tolerances can help achieve:
- Accurate component fit
- Reliable assembly
- Consistent product performance
- Better interchangeability
- Reduced manufacturing problems
- Controlled production costs
- Improved quality
- Reliable component functionality
Consequently, tolerance selection should always consider the actual application requirements.
Common Types of CNC Machining Tolerances
CNC machining involves several different types of tolerances. Each one controls a different aspect of the finished component.
1. Dimensional Tolerance
Dimensional tolerance controls the acceptable variation in a feature’s size.
For example:
50 mm ±0.10 mm
means the dimension can range from:
49.90 mm to 50.10 mm
Dimensional tolerances are commonly applied to:
- Length
- Width
- Height
- Diameter
- Hole size
- Slot width
- Thickness
Therefore, dimensional tolerance is one of the most commonly specified CNC machining tolerances.
2. Positional Tolerance
Positional tolerance controls where a feature must be located relative to a reference point or datum.
This is particularly important for:
- Bolt holes
- Mounting holes
- Connector locations
- Shafts
- Pins
- Assembly features
For example, a component may have correctly sized holes but still fail during assembly if those holes are positioned incorrectly.
Therefore, positional accuracy can be just as important as dimensional accuracy.
3. Geometric Tolerance
Geometric tolerances control the shape and geometry of a component.
They can control characteristics such as:
- Straightness
- Flatness
- Circularity
- Cylindricity
- Parallelism
- Perpendicularity
- Angularity
- Profile
Consequently, geometric tolerances help manufacturers control the overall shape and relationship between different features.
4. Surface Finish Tolerance
Surface finish describes the texture or roughness of a machined surface.
Some components require smoother surfaces because they interact with:
- Bearings
- Seals
- Sliding components
- Hydraulic systems
- Moving assemblies
However, achieving a finer surface finish may require additional machining operations or finishing processes.
Therefore, surface finish requirements should be specified according to the actual application rather than automatically choosing the smoothest possible finish.
What Is a Standard CNC Machining Tolerance?
There is no single tolerance that applies to every CNC machined component.
The achievable tolerance depends on several factors, including:
- Machine capability
- Material
- Part geometry
- Feature size
- Machining process
- Tool condition
- Workholding
- Thermal expansion
- Inspection method
- Production volume
For many general CNC machining applications, manufacturers may work with tolerances around ±0.1 mm, while tighter tolerances can be achieved when the design, material, machine, tooling, and inspection process support them.
However, extremely tight tolerances may require specialized processes and additional inspection.
Therefore, manufacturers should discuss critical tolerance requirements before production.
Factors That Affect CNC Machining Accuracy
Several manufacturing factors can influence the final tolerance of a CNC machined component.
Machine Capability
Modern CNC machines can provide high levels of repeatability. However, machine accuracy and condition still affect the final result.
Regular maintenance and calibration can help maintain machining performance.
Material Selection
Different materials respond differently during machining.
For example, some materials can generate more heat or experience dimensional changes during machining.
Therefore, material selection can influence achievable tolerances.
Part Geometry
Complex geometries can make tight tolerances more difficult to achieve.
Deep cavities, thin walls, long features, and difficult-to-access surfaces may require additional setups or specialized tooling.
Tool Wear
Cutting tools gradually wear during machining.
As tool wear increases, dimensional accuracy can change.
Therefore, monitoring tool condition is important for maintaining consistent production.
Temperature
Heat generated during machining can cause thermal expansion.
Consequently, temperature control becomes increasingly important when manufacturing components with tight tolerances.
Workholding
A component must remain securely positioned during machining.
Poor workholding can cause movement, vibration, or distortion, which can affect dimensional accuracy.
Tight Tolerances vs Standard Tolerances
A common misconception is that tighter tolerances always produce better parts.
In reality, the correct tolerance depends on the application.
Standard Tolerances
Standard tolerances are suitable for features where small dimensional variations do not affect functionality.
They can help reduce:
- Machining time
- Inspection requirements
- Production complexity
- Manufacturing costs
Tight Tolerances
Tight tolerances are appropriate when precise dimensions are essential for:
- Interchangeable components
- Precision assemblies
- Bearings
- Shafts
- Sealing surfaces
- Mechanical interfaces
- Critical tooling components
However, tighter tolerances generally require greater manufacturing control.
Therefore, the best approach is to use tight tolerances only where they are necessary.
How Tolerances Affect CNC Machining Costs
Tolerance requirements can directly influence manufacturing costs.
When a component requires extremely tight tolerances, the manufacturer may need:
- Additional machining operations
- Specialized cutting tools
- Multiple setups
- Slower machining speeds
- Additional inspection
- Temperature control
- More precise workholding
- Specialized measuring equipment
As a result, unnecessary tight tolerances can increase production costs without providing additional functional benefits.
Therefore, engineers should apply tighter tolerances only to critical features.
CNC Milling Tolerances
CNC milling is commonly used to manufacture brackets, housings, plates, fixtures, tooling, mold components, and complex mechanical parts.
Tolerance requirements can apply to:
- Pocket dimensions
- Hole diameters
- Hole locations
- Slot widths
- Wall thickness
- Overall dimensions
- Flatness
- Parallelism
Moreover, multi-axis CNC milling can provide greater flexibility for complex geometries.
Therefore, the required tolerance should be considered during the design stage.
CNC Turning Tolerances
CNC turning is commonly used for rotational components such as:
- Shafts
- Pins
- Bushings
- Spacers
- Sleeves
- Rollers
- Couplings
Important tolerance requirements may include:
- Diameter
- Length
- Concentricity
- Roundness
- Thread dimensions
- Surface finish
Consequently, CNC turning can provide the dimensional consistency required for many precision rotational components.
Tolerances for CNC Prototypes
Prototype components often require accurate dimensions because engineers use them to validate product designs.
However, prototypes do not necessarily require the same tolerance level for every feature.
Therefore, engineers should identify the dimensions that affect:
- Assembly
- Fit
- Function
- Performance
- Safety
- Testing
Then, apply tighter tolerances only to those critical features.
This approach can help reduce prototype manufacturing costs while maintaining functional accuracy.
Tolerances for Production CNC Machining
Production machining requires consistent results across multiple components.
Therefore, manufacturers must control:
- Machine setup
- Tool wear
- Material variation
- Cutting conditions
- Inspection
- Workholding
- Process stability
A well-controlled manufacturing process can help maintain consistent dimensions throughout a production run.
Consequently, tolerance management becomes particularly important for high-volume CNC manufacturing.
How to Specify CNC Machining Tolerances
When preparing a CAD file or engineering drawing, clearly identify the required tolerance for critical dimensions.
A good specification should include:
- Nominal dimension
- Tolerance range
- Material
- Surface finish
- Geometric requirements
- Reference datums where applicable
- Critical features
- Inspection requirements
For example, instead of simply specifying a hole diameter, an engineering drawing can define the required diameter and acceptable tolerance.
Therefore, clear technical documentation helps reduce manufacturing misunderstandings.
How Polymach365 Supports Precision CNC Machining
At Polymach365, customers can submit CAD designs for CNC manufacturing requirements.
Our manufacturing workflow supports:
- CNC Milling
- CNC Turning
- 5-Axis CNC Machining
- Prototype Manufacturing
- Low-Volume Production
- Custom CNC Parts
- Precision Machined Components
- Mold Components
The process begins with your digital design and manufacturing requirements.
Our Workflow
CAD File → Manufacturing Review → CNC Machining → Quality Inspection → Finished Parts
Therefore, providing accurate CAD files, material specifications, quantities, tolerance requirements, and finishing details can help establish the appropriate manufacturing process.
Before finalizing your design, consider these practical points:
Identify Critical Features
Determine which dimensions directly affect assembly and performance.
Avoid Unnecessary Tight Tolerances
Do not specify extremely tight tolerances simply because greater accuracy sounds better.
Consider the Material
Different materials may respond differently during machining.
Consider the Machining Process
CNC milling, turning, and 5-axis machining can have different manufacturing considerations.
Discuss Difficult Features Early
Deep cavities, thin walls, complex profiles, and difficult geometries may require additional planning.
Plan Inspection Requirements
Critical dimensions may require additional measurement and inspection.
As a result, early communication between the designer and manufacturer can prevent costly changes later.
CNC machining tolerances are essential for producing accurate, functional, and reliable components. However, the tightest possible tolerance is not always the best choice.
Instead, manufacturers should select tolerances based on the component’s function, assembly requirements, material, geometry, machining process, production quantity, and inspection requirements.
When you apply the correct tolerances, you can improve component performance while avoiding unnecessary manufacturing costs.
Whether you need a CNC prototype, custom machined component, mold component, low-volume batch, or production part, Polymach365 provides digital CNC manufacturing solutions to help transform your CAD design into finished components.
